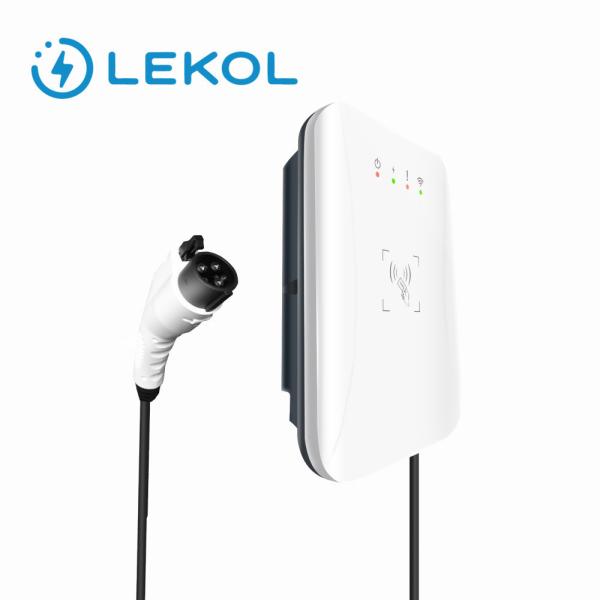

Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger

Beijing Lekol Technology CO., LTD.
Contact Now
    Buy cheap Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger from wholesalers

    Buy cheap Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger from wholesalers
    • Buy cheap Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger from wholesalers
    • Buy cheap Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger from wholesalers
    • Buy cheap Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger from wholesalers
    • Buy cheap Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger from wholesalers

    Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger

    Ask Lasest Price
    Brand Name : Lekol
    Model Number : LQM3P132U
    Certification : CE NB
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50000PCS per month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger

    Agents Need RFID EV Charger AC Charger For Electric Car 11kw Pubilc Use


    Today everyone’s talking about energy preserving, environmental protection, global warming and deteriorating habitation issues. EV emerged for this need along with more and more people driving EV. While as important as the development of EV itself, the infrastructure and accessories of powering those EV are equally critical to speed up this motion. So we decided to take part in, and to devote our efforts in the EVSE industry.


    Lekol has the fast electric car EV charger charging station, we mostly do include type 1, type 2, one phase, three phase, level 2 voltage, 16A, 32A, 40A current, 3.5kw, 7kw, 10kw, 11kw, 22kw charging station of SAE J1172 and IEC 62196-2 standards for home use(residential) and commercial use which cover most market needs in most countries.

    Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger

    CAUTION:


    1. Don't submerge the ev charging box in water;

    2. Don't step on, fold or knot the cable;

    3. Don't drop the EV charging box or place a heavy object on it;

    4. Don't place the charging cable near high temperature object when charging;

    5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C;

    6. Power-supply side input cable should be at least 3*6mm, with a standard 32A socket;

    It is suggested that the power distribution is done by the professionals;

    7. Don't put fingers into the charging connector when the power plug is still connecting to the

    power;

    8. Don't use this ev charging box when the cable is damaged;

    9. The ev charging box is only for ev charging using;

    10. Don't use this device with an extension cord or adaptor.

    Plug And Play RFID EV Charger AC IP65 For Electric Car Pubilc 11kw 3 Phase Charger


    Specification


    Charging Connector/ plug type
    IEC62196-2 /Type 2
    SAEJ1772 /Type 1
    AC Power input rating
    1 phase 220V±15%
    3 phase
    380V±15%
    AC Level 2
    240V
    AC Power Output Rating
    3.5KW /16A
    11KW /16A
    3.5KW/16A
    7KW/32A
    22KW/32A
    7KW/32A
    N/A
    43KW/63A
    10KW.40A
    Rated Frequency
    50/60HZ
    User interface & control
    Charging control
    Plug and charge √
    RFID card √
    CMS operate √
    Display Screen
    4.3inch LCD screen
    Wifi connection
    Support √
    OCPP Protocol
    1.6J √
    2.0.1 √
    Ethernet Interface
    LAN(RJ-45) √
    APP interface
    Support √

    Environmental
    Storage Temperature
    -40 ~ 75℃
    Operating Temperature
    -30 ~ 55℃
    Operating Humidity
    Up tp 95%, non-condensing
    Altitude
    ≤2000m
    Cooling Method
    Natural Cooling
    Protection
    Over Voltage Protection
    Under Voltage Protection
    Over Load Protection
    Short Circuit Protection
    Earth Leakage Protection
    Ground Protection
    Over-temp Protection
    Surge Protection
    RCD
    RCCB or Type B
    Protection ratings
    IP54 ( CE certified)
    Wallbox Charger Mechanical
    Dimension(H×W×D,mm)
    410×260×164
    Weight
    1 phase :9kg 3 phase:12kg
    Charging Cable Length
    5m or 7.5m or customized
    Enclosure Material
    Front-panel: Tempered Glass, Back-cover: Plate Metal
    LQM3T Mounting Pole(Optional)
    Dimension(H×W×D,mm)
    1400×200×100
    Weight
    <8kg
    Enclosure Material
    Metal

    WHY US?


    1. First, Lekol’s chargers Compatibility with most global Electric Vehicles charging interface. Lekol has the CE, ROHS, REACH certificate for European Market.

    2. Lekol has a series of EV chargers to meet different customer’s needs. such as for home use or for commercial.

    3. Lekol is the directly manufacturer, our main products are AC Wallbox, AC Integrated EV Charger, DC fast charging stations, EV connectors. There is no the middleman, you can get the best price and services. Lekol has strong R&D Capability, OEM and ODM are available.

    4. How to promise the quality? First, Lekol produce the chargers in strict accordance with quality management system standard (ISO9000). Second, in the production, we will age and test the EV CHARGER 3 times; Third, through the Digital Factory, production can be traced and visualized, so as to ensure the stability of products.

    5. Our mission is: Create higher value for customers with innovative products and services. Come and be our customers!
